TWC DIY Measuring Procedure

    (Optional) download and print out this PDF to help you write down the measurements.

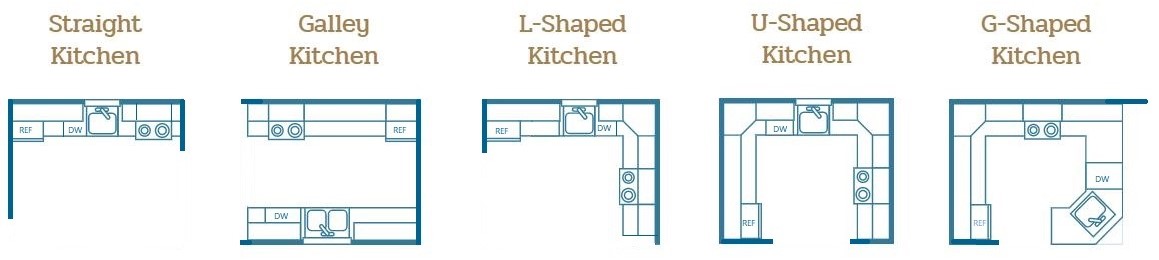

Step 1 - Identify your kitchen shape you have or want below:

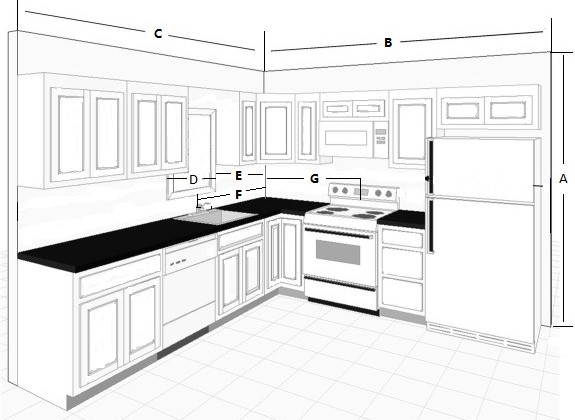

Step 2 - Using a tape measure, measure and write down the distance as outline below:

• ✔ A - Measure the ceiling height from the floor.
• ✔ B & C - Measure the overall length of each wall.
• ✔ D - Measure the size of doors and windows (including the trim).
• ✔ E - Measure the distance from the edge of a wall to the edge of the window trim.
• ✔ F - Measure the exact distance from the edge of a wall to the location of the water drain line.
• ✔ G - Measure the exact distance from the edge of a wall to the gas lines and/or the electrical outlet for the stove.
• ✔ * Tell us the size and type if you want to have an additional island.

Step 3 - Please identify the type and size of your appliance you want or currently have:
